品牌：AMCOM、RF-LAMBDA、PICO、MARF
封装：陶瓷
规格尺寸：--
起订：10pcs
供应：1000pcs
| 封装 | 陶瓷 |
|---|---|
| 规格尺寸 | -- |
| 静态功耗 | -- |
| 批号 | 15+ |
| 正常工作温度 | -55℃ to +135℃ |
| 营销方式 | 授权代理，现货 |
| 产品性质 | GaAs MMIC Power Amplifier |
| 处理信号 | 3.2 to 4.0GHz |
| 导电类型 | 导 |
| 品牌 | AMCOM |
| 型号 | AM324036WM-BM-R |

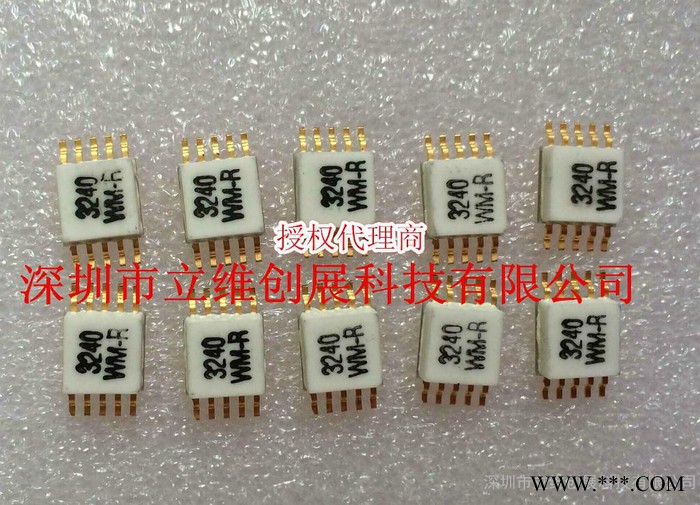

本公司授权代理AMCOM，砷化镓GaAs MMIC功率放大器型号AM324036WM-BM-R或AM324036WM-FM-R，其中AM324036WM-BM-R部分现货，订货1-2周。AM324036WM-FM-R是将AM324036WM-BM-R组装在一个镀金铜法兰载体用螺钉固定在一个金属散热器。详细说明见规格书。
AMCOM’s AM324036WM-BM/FM-R is part of the GaAs MMIC power amplifier series. It has 29dB gain and 36dBm output power over the 3.2 to 4.0GHz band. This MMIC is in a ceramic package with both RF and DC leads at the lower level of the package to facilitate low-cost SMT assembly to the PC board. When mounting directly to PCB, please see application note AN700 for instructions. Because of high DC power dissipation, we strongly recommend to mount these devices directly on a metal heat sink. The AM324036WM-FM-R is the AM324036WM-BM-R mounted on a gold plated copper flange carrier. There are two screw holes on the flange to facilitate screwing on to a metal heat sink. This MMIC is RoHS compliant.
AM324036WM-BM-R或AM324036WM-FM-R产品特性：
Wide bandwidth from 3.2 to 4.0GHz
High output power, P1dB = 36dBm
High gain, 29dB
Fully matched; 50-ohm input/output impedance
AM324036WM-BM-R或AM324036WM-FM-R产品应用：
Wireless Internet Access
Wireless Local Loop
Two way radio
如需更多产品与服务，请联系我们
